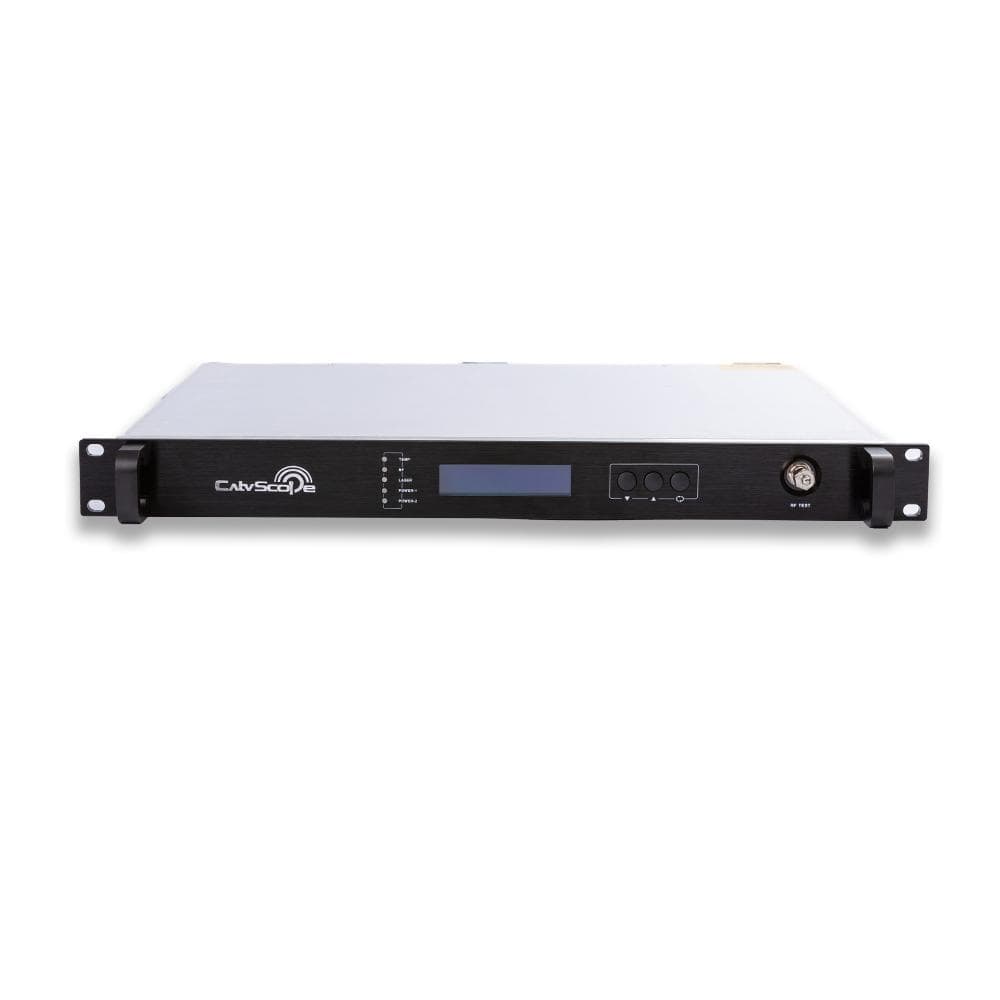

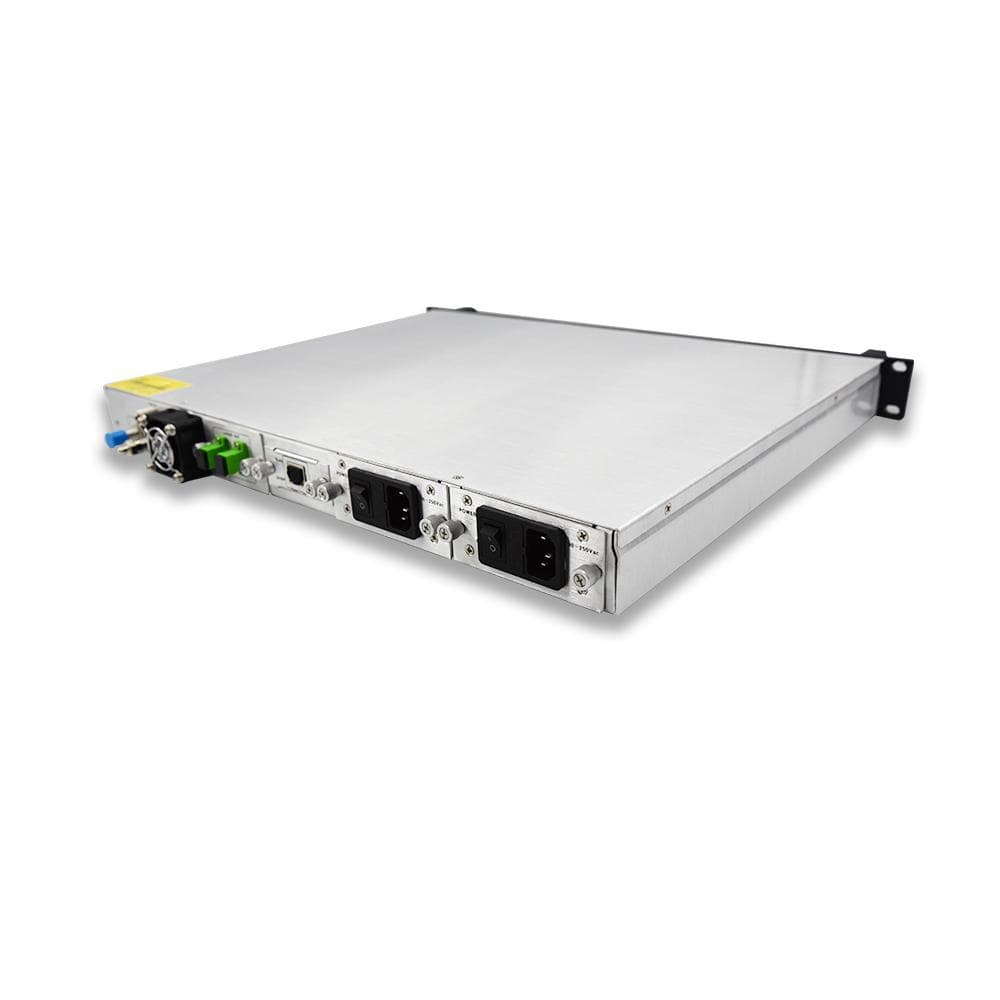

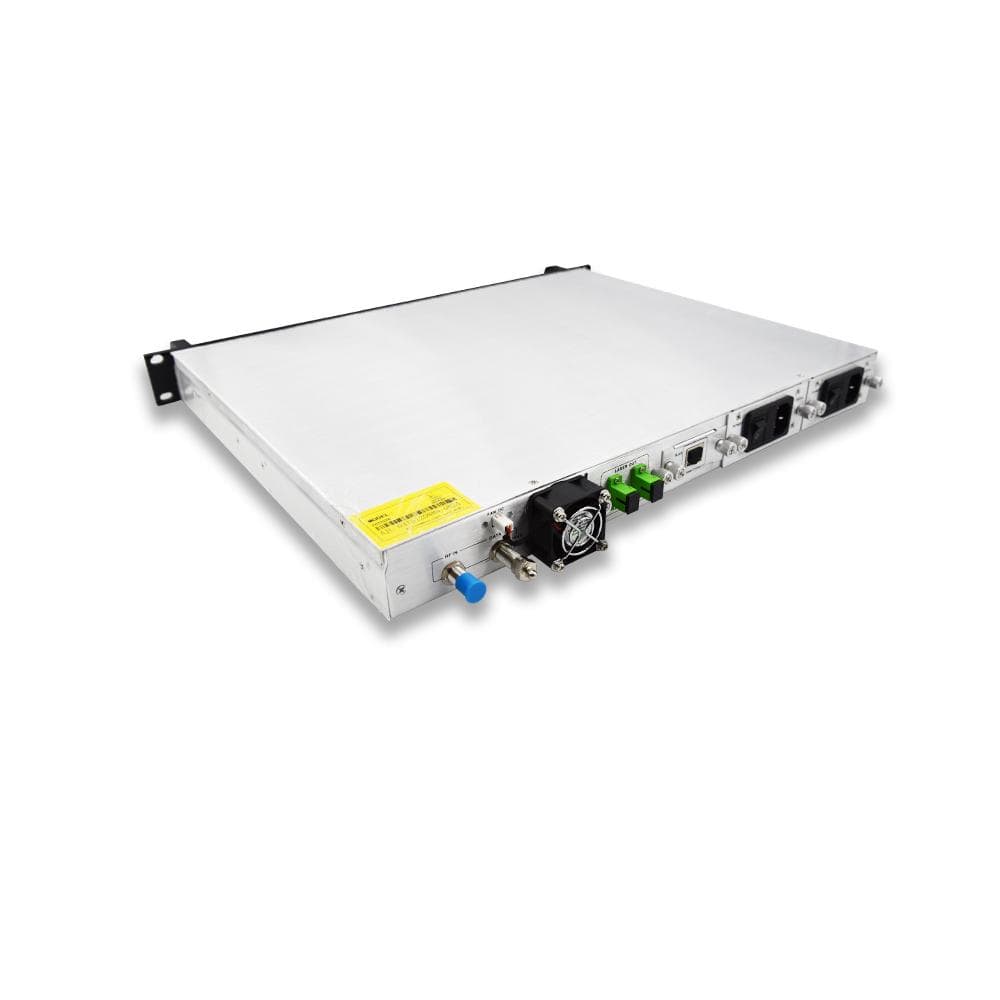

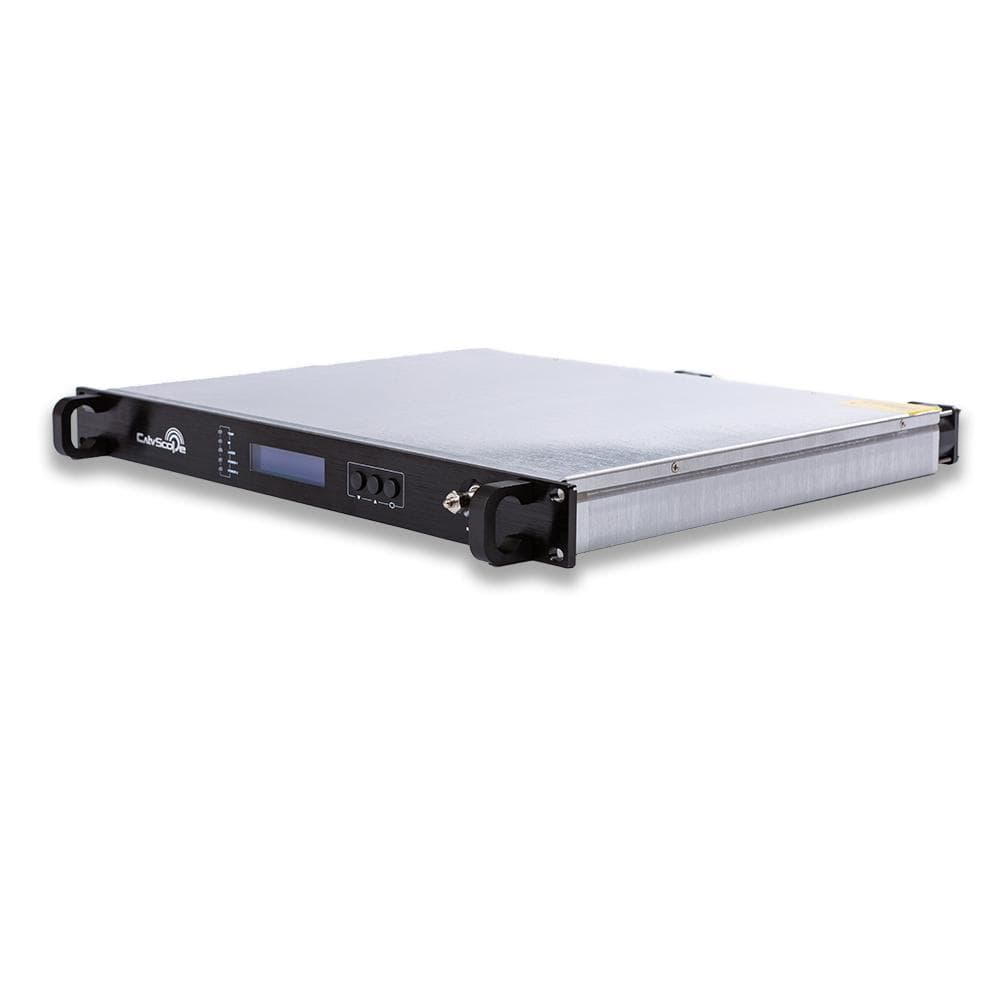

EOT-55XX-S Standard Optical Transmitter with Backup Power 50~100Km

Available: In Stock
$4,651.00 $4,651.00
Compare
  • Order within
EOT-55XXSSeries External Modulation Optical Transmitter adopts narrow line width(Typ.=1MHz), low noiseand continuous wave DFB laser as light source and adopts low cost single-output LiNb03 external modulatorthat is especially designed by JDSU to modulate signal, which reduce the cost of transmitter largely.Based ona series of characterized optimization and technical innovation.

EOT-55xXS Series External Modulation Optical Transmitter can reach excellent index with flatness ≤ 0.75dB in bandwidth of 47~862MHz,SBS:13.16.18 dBm, CSO≤-65dB,CTB≤-65dB,CNR≥51dB.The wholeunit is equipped with perfect RS232 communication interface,SNMP network management, 1+1 back-up power supply, and casing temperature auto-control.All the optical port for ETL-8500 Series External Modulation Optical Transmitter can be installed in the front panel(the back panel is also available if needed).
EOT-55XXSSeries External Modulation Optical Transmitter adopts narrow line width(Typ.=1MHz), low noiseand continuous wave DFB laser as light source and adopts low cost single-output LiNb03 external modulatorthat is especially designed by JDSU to modulate signal, which reduce the cost of transmitter largely.Based ona series of characterized optimization and technical innovation.
EOT-55xXS Series External Modulation Optical Transmitter can reach excellent index with flatness ≤ 0.75dB in bandwidth of 47~862MHz,SBS:13.16.18 dBm, CSO≤-65dB,CTB≤-65dB,CNR≥51dB.The wholeunit is equipped with perfect RS232 communication interface,SNMP network management, 1+1 back-up power supply, and casing temperature auto-control.All the optical port for ETL-8500 Series External Modulation Optical Transmitter can be installed in the front panel(the back panel is also available if needed).
Model EOT-55XX-S

Using distance Km 50-100
Optical properties Performance Unit Index
Wavelength nm 1550nm±10
Side Mode Suppression Ratio dB ≥45
Output power dBm 2X 5-10 1X 2-12
Mw 2X 2-10 1X 2-16
Reflection loss dB ≥55
Optical fiber connector
FC/APC,SC/APC
RF
characteristics
Working band Mhz 47~862/1000
Input Level dBuv 80 ± 5(AGC)
Flatness dB ≤±0.75
Transmission loss dB >16
Input impedance Ω 75
Link characteristics Test channel
PAL-D/60CH PAL-D/99CH
Radio detection dB 0±1
CNR(dB) dB ≥53(-1dBm Receive)
CTB(dB) dB ≤ -65
CSO(dB) dB ≤ -65
General characteristics Network management
RJ45(SNMP),RS232 or RS485
Power supply VAC 90~265VAC ( Optional -48VDC)
Power waste W ≤50(Single supply operation)
Box size (W*D*H) 19*14.5*1.75
