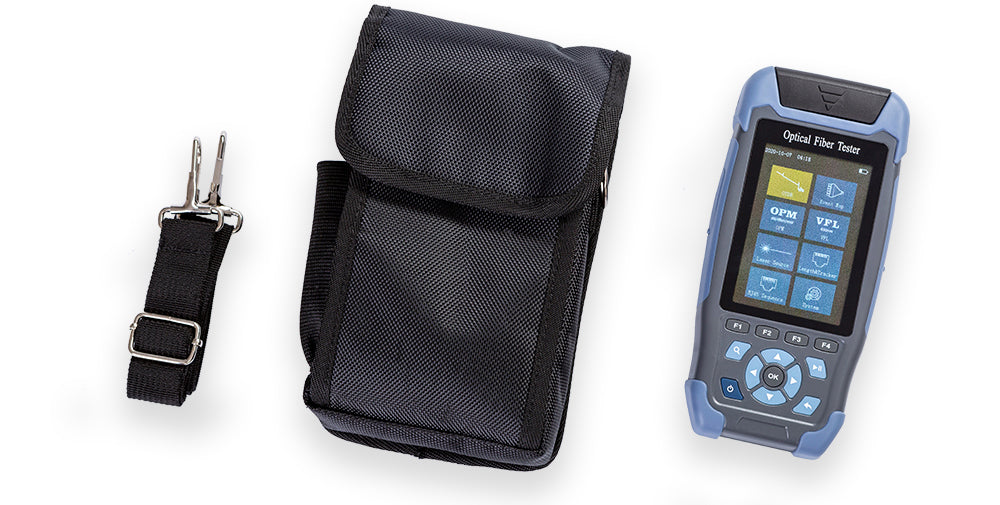

CSP-3302S handle OTDR of MINI ECONOMY
- Product SKU: T2MOS2
- Category: OTDR, Tool&Testers, Tools, top sale
- Order within
* Novel and beautiful appearance and structure design;
* Special protection design of shell, durable and able to work under bad environment;
* Simplest operating interface, shortcut key operation, easy to use;
* Dual operation of touch screen and keys;
* Short event blind zone, test 5 m fiber jumper easily; Have a multiple kinds of test modes such as automatic test, manual test and blind zone test, etc..
* Light detection and alarm are provided in the line, to avoid signal light from damage the instrument in the tested optical
fiber;
* Built-in high-power visual red light fault positioning function;
* The USB interface functions can quickly realize the file transfer and report form preparation;
* The universal light output connector is easy to replace, which is able to realize e a variety of interface tests;
* Smart battery electric quantity indication and low –voltage alarm function;
* 10-hour long time of duration, particularly suitable for the field construction application for a long time;
* The multi-wavelength and dynamic range selection can satisfy customer’s high higher cost performance demands to the greatest extent;
* The highly intelligent analysis software can accurately identify the fault splices, connectors and even macro-bending;
* Language: multiple choices of languages, such as Chinese, English, etc, which can be customized according to customer’s requirements.
| Model | CSP-3302SA | CSP-3302SB |
| Type of optical fiber | Single –mode | |
| Center wavelength | 1310nm/1550nm (±20nm) | |
| Maximum dynamic range (dB) | 36/35 | 30/28 |
| Event blind zone | 1.5m | |
| Attenuation blind zone | 10m | |
| Display type | 3.5inch, color LCD, touch screen operation | |
| Optical interface | FC/UPC (Interchangeable SC, ST) | |
| Test range | 500m,1km,2km,4km,8km,16km,32km,64km,128km | |
| Pulse width | 10,30,50,100,275,500,1000,5000,10000ns | |
| Range accuracy | ± (1m + sampling interval +0.005% × distance) | |
| Attenuation measurement | ±0.05 dB/dB | |
| Reflection measurement | ±4dB | |
| Data storage | ≥ 1000 test curves | |
| Communication interface | USB | |
| Power supply mode |
AC / DC adapter: AC: 100V ~ 240V (1.5A), 50/60Hz DC: 18V to 20V (2A) Internal lithium-ion battery pack: 7.4V, 4400mAh |
|
| Battery operation time | ≥ 10hours | |
| Operating temperature | -5℃ ～ 50℃ | |
| Storage temperature | -20℃ ～ 70℃ | |
| Relative humidity | 0 ～ 95％, no condensation | |
| Weight | 1.8kg | |
| Volume | 32*20*21cm | |
